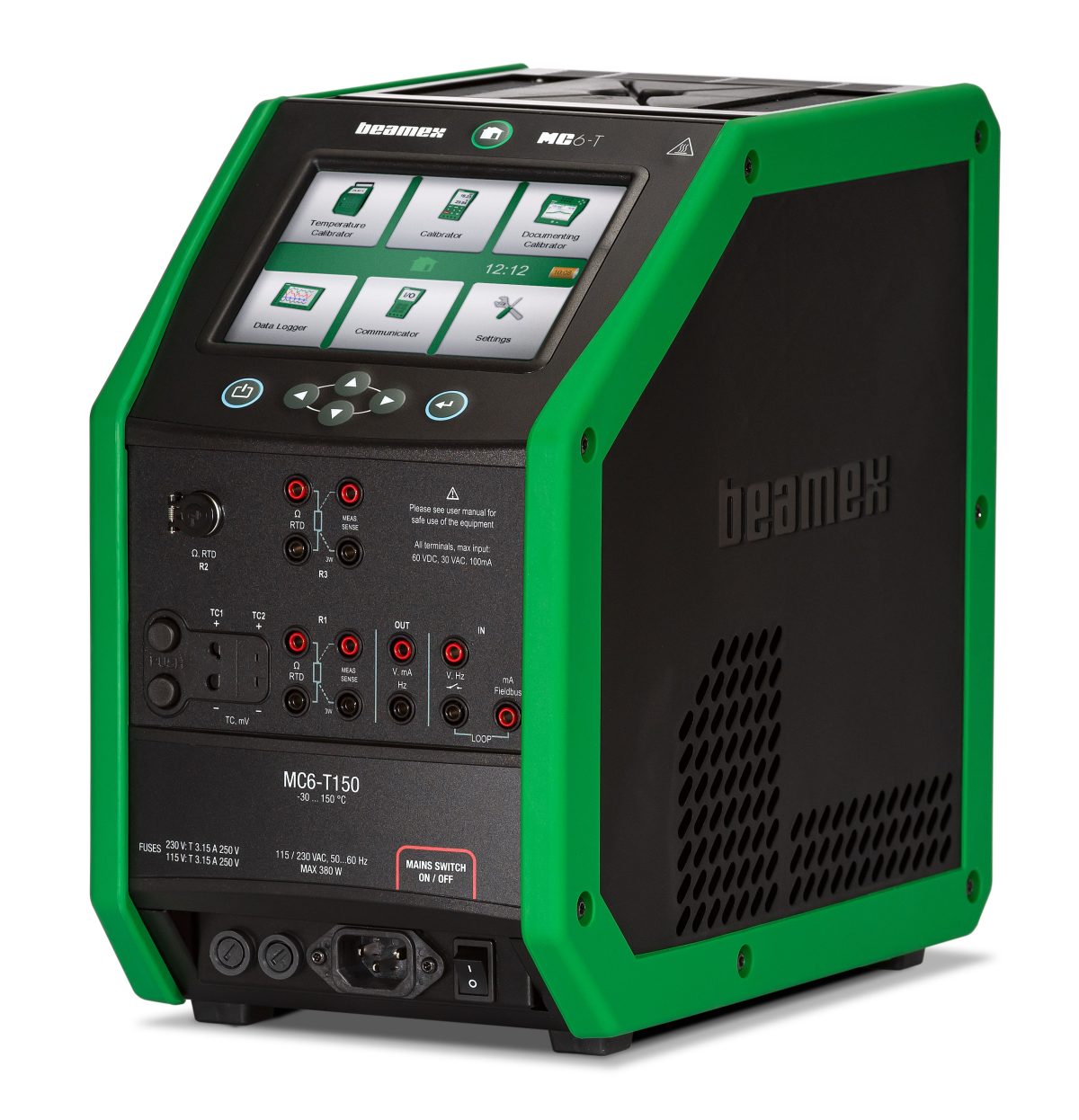

Beamex MC6-T

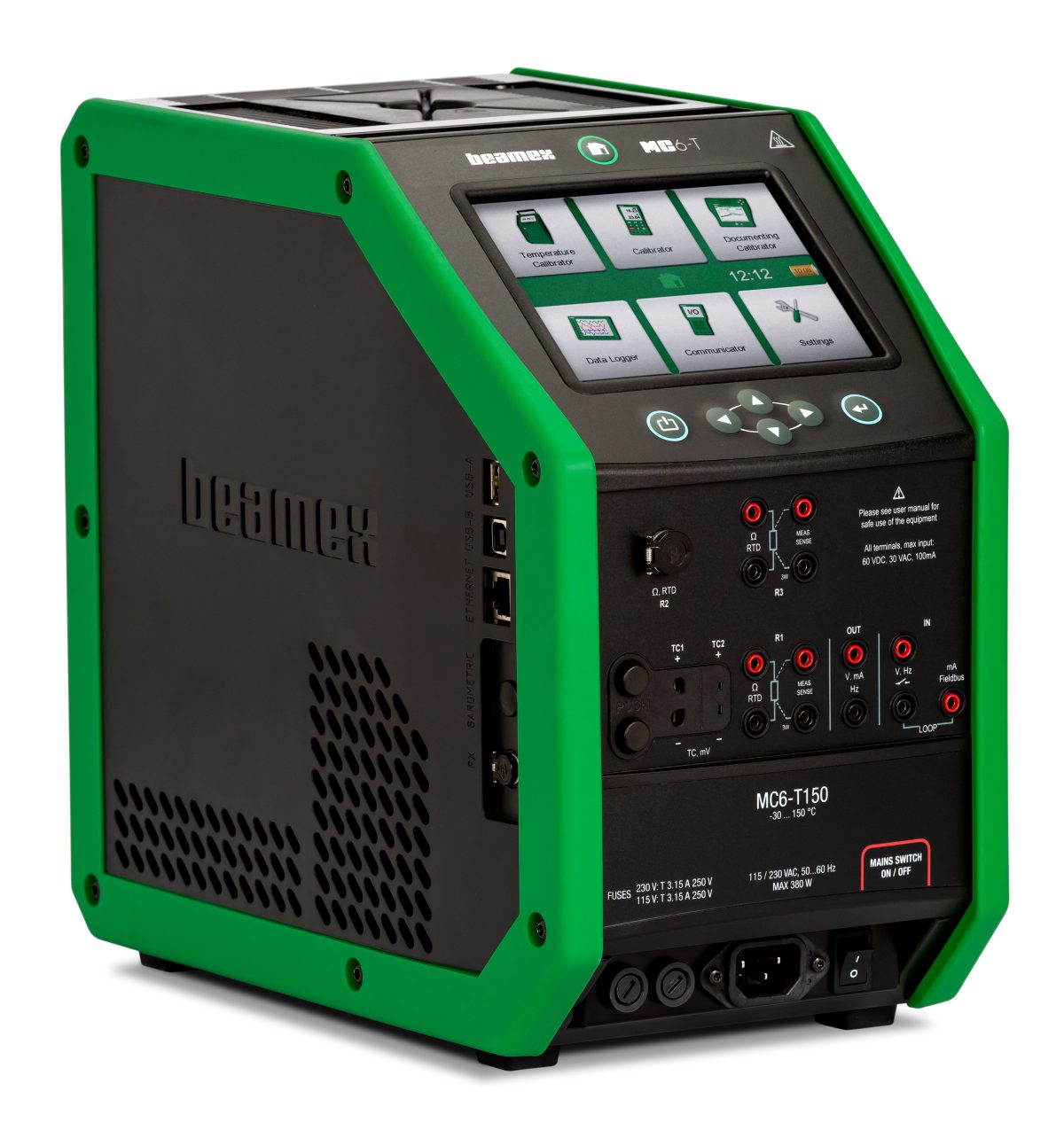

Beamex MC6-T - Image 2

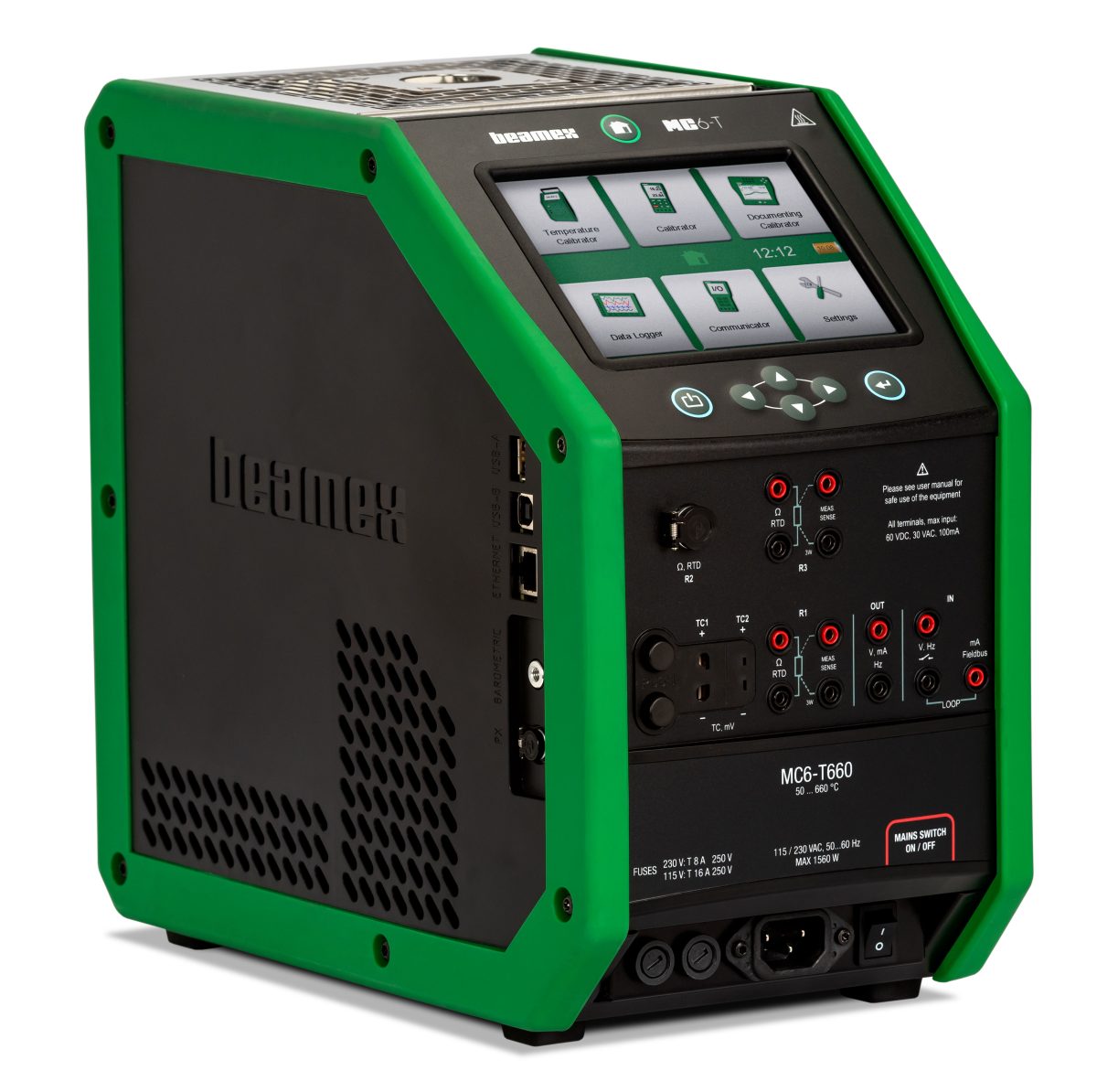

Beamex MC6-T - Image 3

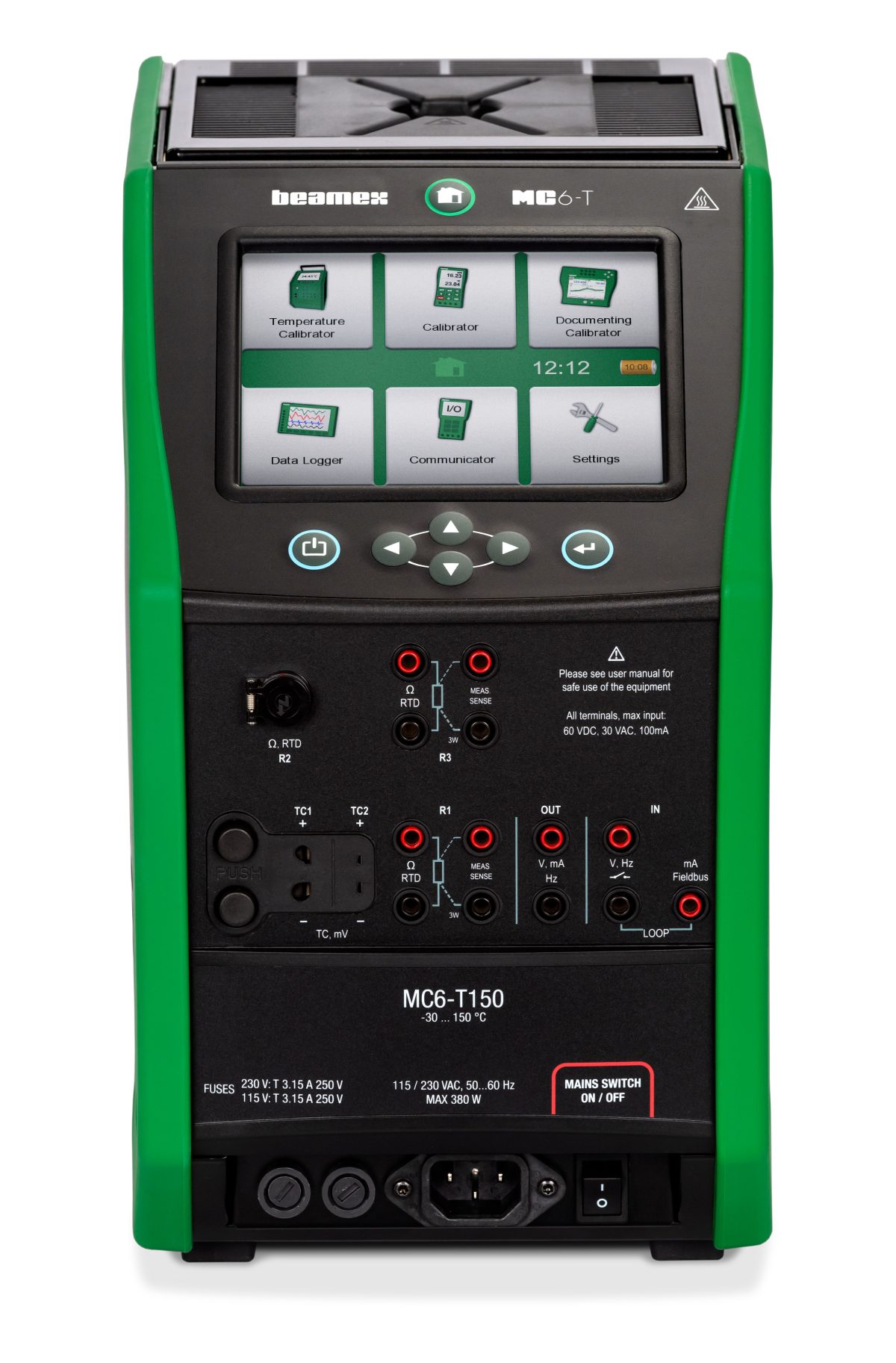

Beamex MC6-T - Image 4

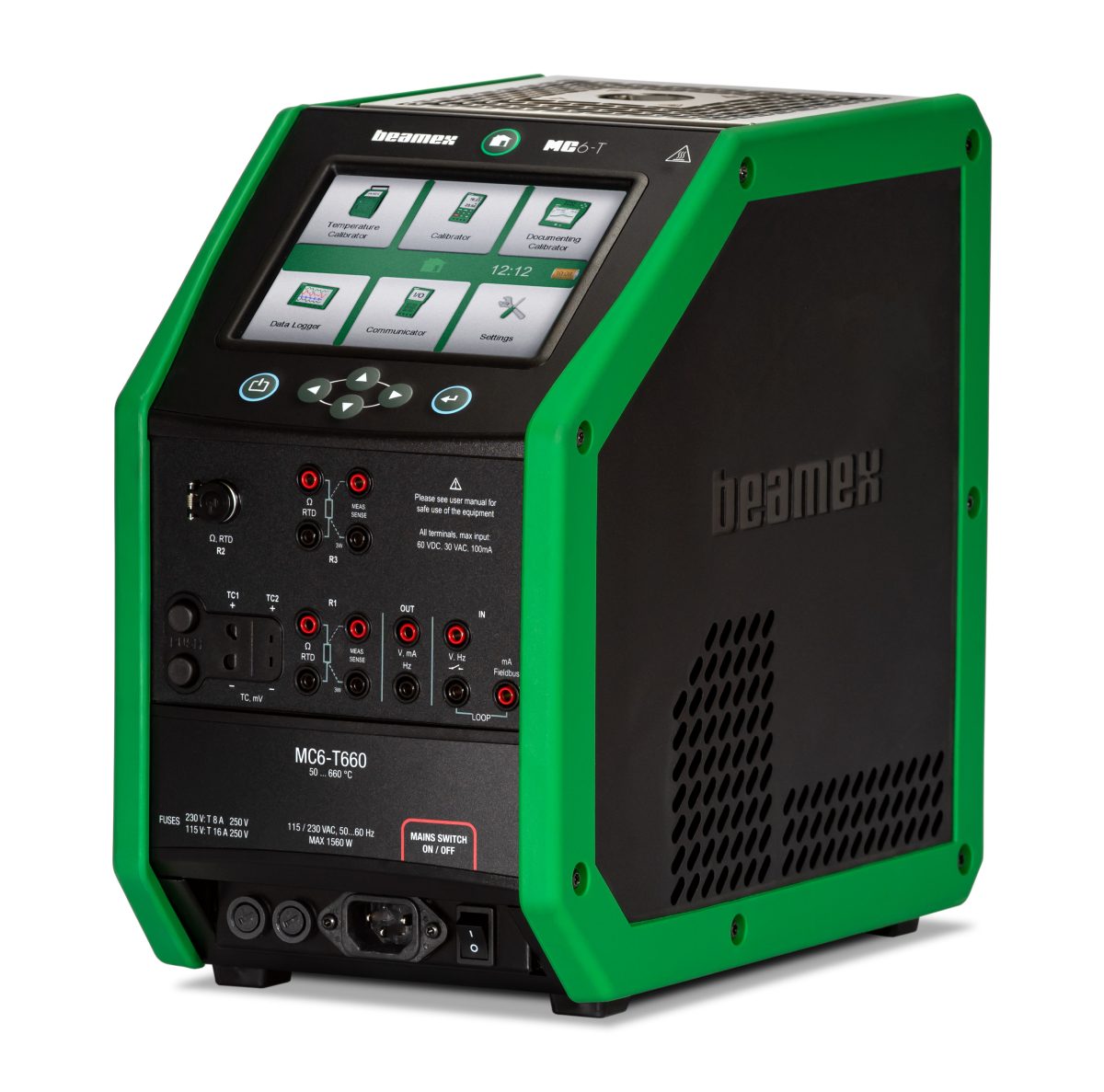

Beamex MC6-T - Image 5

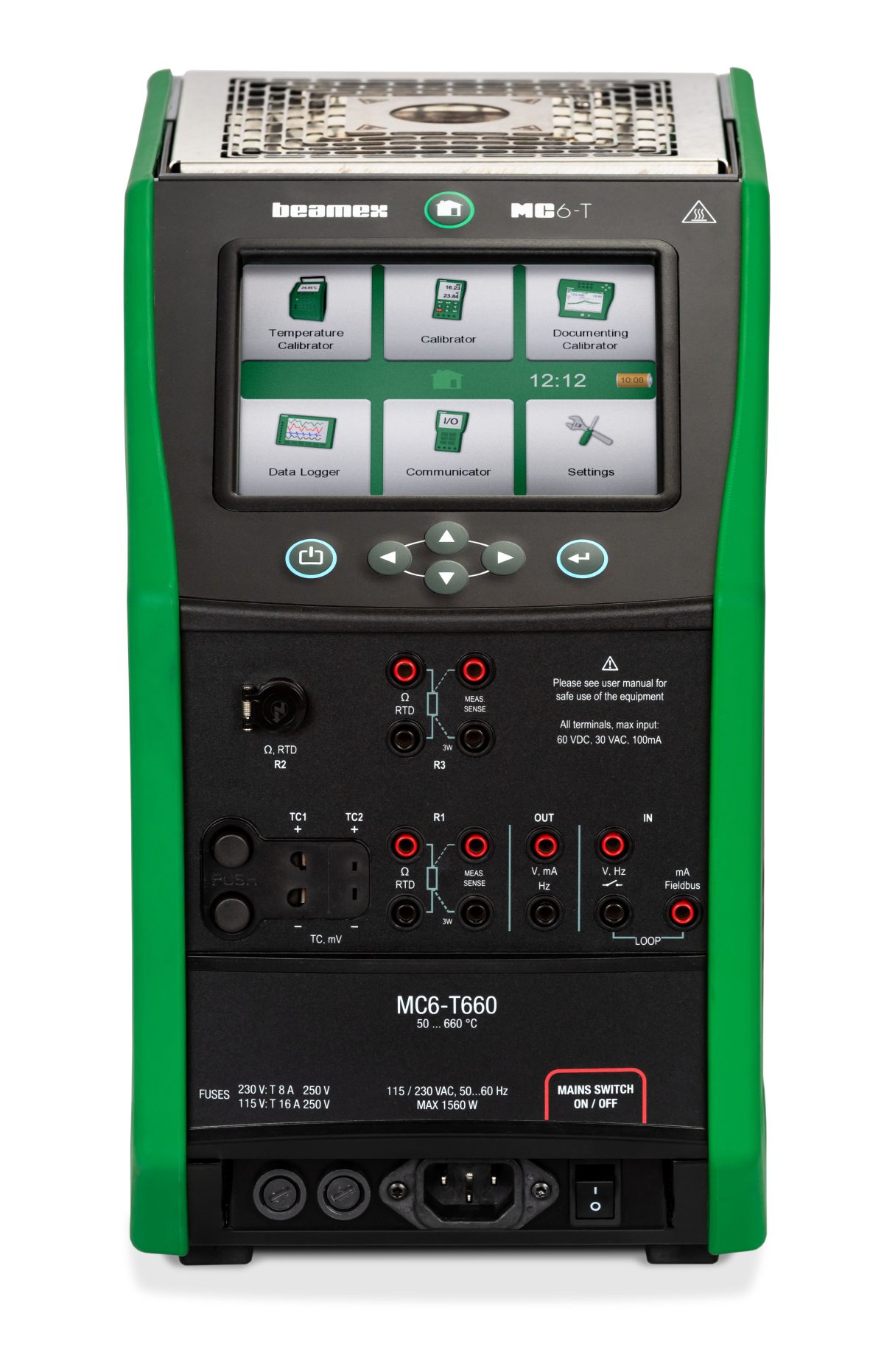

Beamex MC6-T - Image 6
Beamex

Beamex MC6-T

The Beamex MC6-T is an extremely versatile portable automated temperature calibration system. It combines a state-of-the-art temperature dry-block with Beamex MC6 multifunction process calibrator and communicator technology.

It offers versatility, that no other temperature calibrator can match.

View a 3D render of the MC6-T here: https://www.beamex.com/mc6-t-3d/

Product Specifications

Dimensions 322 mm x 180 mm x 298 mm (12,68″ x 7,09″ x 11,73″)
Weight MC6-T150: 9.4 kg (20.7 lbs)
Weight MC6-T660: 8.6 kg (18.96 lbs)
Display 5.7” Diagonal 640 x 480 TFT LCD Module
Touch Panel 5-wire resistive touch screen
Keyboard Membrane keyboard
Backlight LED backlight, adjustable brightness
Power requirements 230 V ±10%, 50/60 Hz, 380 W (MC6-T150, 1560 W (MC6-T660) / 115 V ±10%, 50/60 Hz, 380 W (MC6-T150), 1560 W (MC6-T660)
Fuse size (MC6-T660) 230 V: T 8A 250V / 115 V: T 16A 250V
Fuse size (MC6-T150) 230 V: T 3.15A 250V / 115 V: T 3.15A 250V
Max. input voltage 30 V AC, 60 V DC
Operating temperature 0 … 45 °C (32 … 113 °F)
Operating humidity 0 … 90% R.H. non condensing
Storage temperature -20 … 60 °C (-4 … 140 °F)
Computer interface USB
Calibration certificate Accredited calibration certificate
Warmup time Specifications valid after a 5 minute warmup period
Battery type Rechargeable lithium-ion polymer, 4300 mAh, 11.1 V
Charging time Approximately 4 hours
Battery operation time 10 … 16 hours
Battery operated functions All functions except temperature control and R3 measurement
Safety Directive 2014/35/EU, EN 61010-1:2010 + A1:2019 + AC:2019-04
EMC Directive 2014/30/EU, EN IEC 61326-1:2021
RoHS compliance RoHS II Directive 2011/65/EU, EN IEC 63000:2018
Drop EN 61010-1:2013
Warranty Warranty 3 years, 1 year for battery pack.
View More

Capabilities

The Beamex MC6-T combines a state-of-the-art temperature dry block with built-in multifunction process calibrator and communicator technology. It offers versatility that no other temperature calibrator can match, providing calibration capabilities for temperature, pressure, and various electrical signals as well as a multi-bus communicator for fieldbus instruments.

  •
    Temperature generation
  • Pressure measurement (internal barometric and external pressure modules)
  • Voltage measurement (±1 V and −1…60 VDC)
  • Current measurement (±100 mA) (internal or external supply)
  • Frequency measurement (0…50 kHz)
  • Pulse counting (0…10 Mpulse)
  • Switch state sensing (dry/wet switch)
  • Built-in 24 VDC loop supply (low impedance, HART impedance or FF/PA impedance)
  • Voltage generation ( ±1 V and −3…24 VDC)
  • Current generation (0…55 mA) (active/passive, i.e. Internal or external supply)
  • Resistance measurement, two simultaneous channels (0…4 kΩ)
  • Resistance simulation (0…4 kΩ)
  • RTD measurement, two simultaneous channels
  • RTD simulation
  • TC measurement, two simultaneous channels (universal connector/mini-plug)
  • TC simulation
  • Frequency generation (0…50 kHz)
  • Pulse queue generation (0…10 Mpulse)
  • HART communicator
  • FOUNDATION Fieldbus communicator
  • Profibus PA communicator

NOTE: Some functions are optional
