FUSION Large Digit Displays
Poole Lifting Bridge links Poole Harbour to the district of Hamworthy. The bridge spans the mouth of Holes Bay which is a tidal lake. The lake contains Cobb’s Quay Marina and the RNLI All Weather Boat Centre, making this channel of water very busy. It is crucial, therefore, that vessels know the clearance available under the bridge.

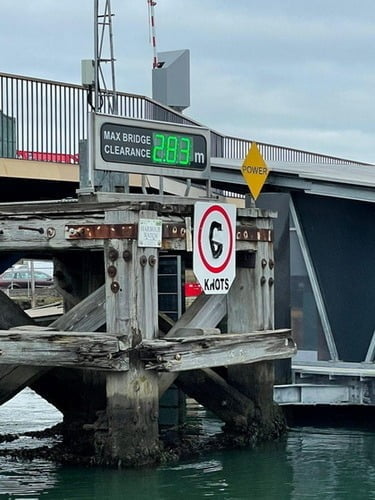

To help with this two of our FUSION large digit displays were installed to show the maximum bridge clearance, each located of either side of the bridge. To give vessels time to be able change course, digits 12” high were used, to give a viewing distance of 150m. They were made from green daylight viewing LEDs. Due to the outside location and placement a few meters above the tideline, the displays are sealed to IP66 within a stainless-steel enclosure.
To work with the tidal sensor present, an INTUITIVE panel meter was used to receive the 4-20mA signal. This is then converted to a RS485 signal which is sent to the FUSION displays to give a live reading of the maximum clearance available to vessels.

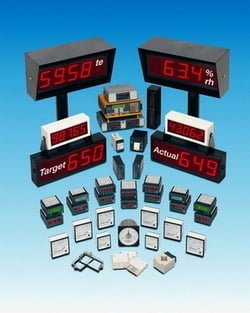

London Electronics digital panel meters are used in so many diverse applications, we invite users to request their own custom special functions. The architecture of the displays is such that it is reasonably straightforward for us to edit the code to provide unique features specific to your needs. If you don’t see a feature you would like.

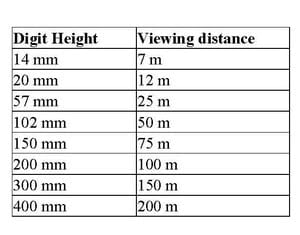

London Electronics have the widest range of digit heights for our displays. Our traditional digital panel meters have digits 14mm high, suitable for viewing up to 7m away, but the full range of digit sizes we offer is …
London Electronics have the widest range of digit heights for our displays. Our traditional digital panel meters have digits 14mm high, suitable for viewing up to 7m away, but the full range of digit sizes we offer is …
The products used for this project were manufactured by London Electronics and AMS Instrumentation & Calibration are the distributors for Australia and new Zealand. If you require any further information contact Dave Grey dave.g@ams-ic.com.au
